Weaving Mesh

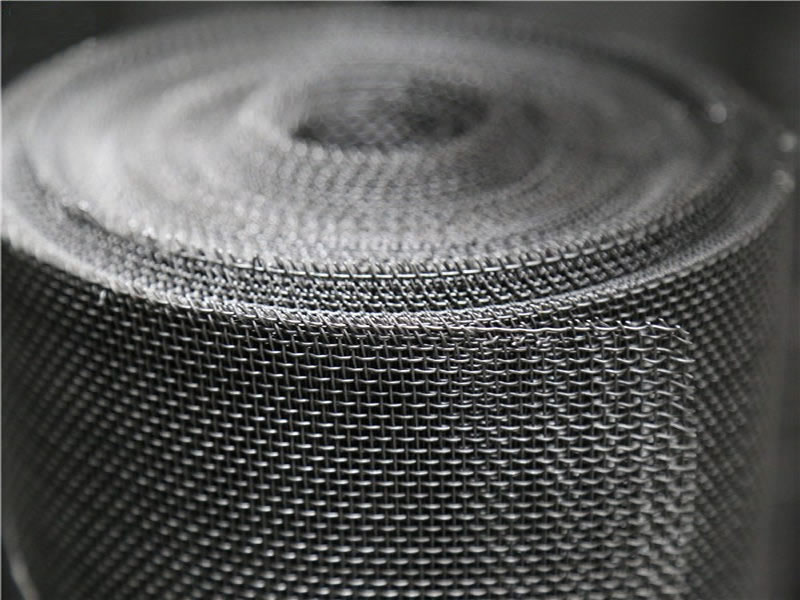

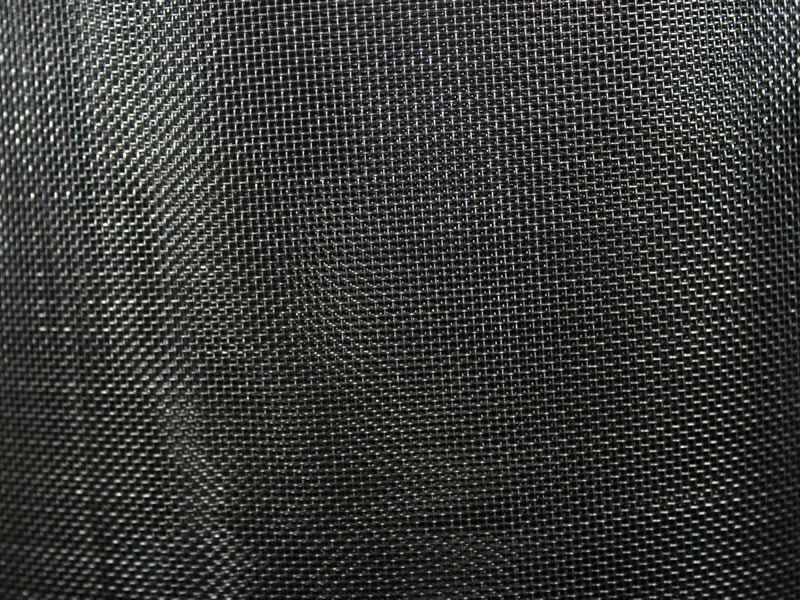

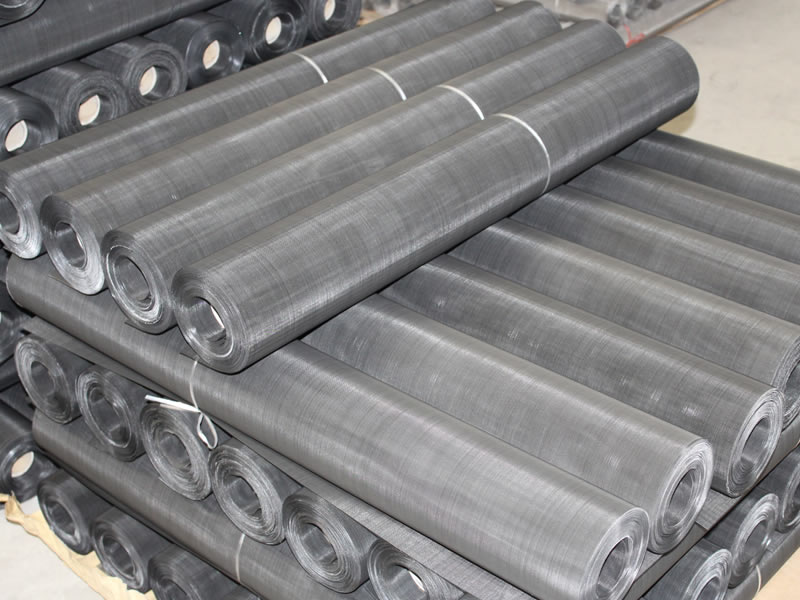

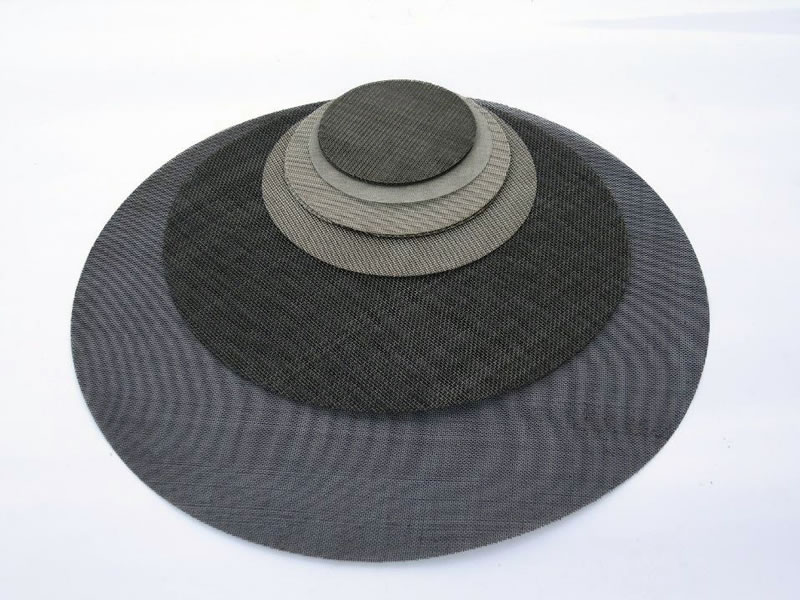

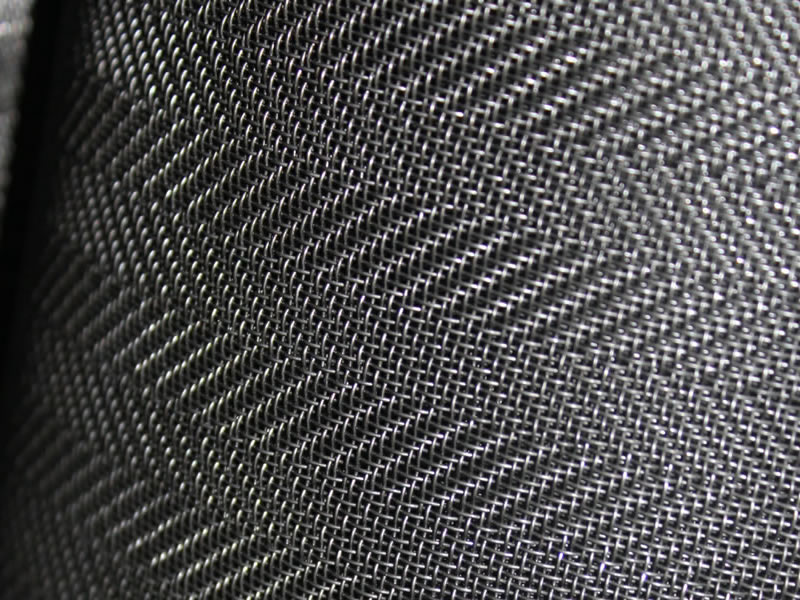

Black Wire Cloth

Black wire cloth is made of mild steel wire, in plain weave or twilled Dutch weave, also known as low carbon steel wire cloth, mild steel wire mesh....

Send Email

Black wire cloth is made of mild steel wire, in plain weave or twilled Dutch weave, also known as low carbon steel wire cloth, mild steel wire mesh. This kind of wire mesh products are mainly used in filtration of rubber industry, plastic industry and grain.
Specification available: see lists below.

We can manufacture from 10 to 60 mesh for Plain weave and Twill weave, and from 12 x 64mesh to 40 x 200mesh for Dutch weave.

Mesh/Inch

Opening (mm)

Wire Diameter( mm)

Reference weight(kg/sq.meter)

10mesh x 10mesh

1.94

0.6

1.8

10mesh x 10mesh

1.98

0.56

1.56

12mesh x 12mesh

1.52

0.6

2.16

12mesh x 12mesh

1.56

0.56

1.88

18mesh x 18mesh

0.96

0.45

1.82

18mesh x 18mesh

1.0

0.41

1.52

18mesh x 18mesh

1.04

0.37

1.23

18mesh x 18mesh

1.06

0.35

1.1

20mesh x 20mesh

0.86

0.41

1.68

20mesh x 20mesh

0.9

0.37

1.38

22mesh x 22mesh

0.74

0.35

1.33

22mesh x 22mesh

0.79

0.30

0.99

24mesh x 24mesh

0.7

0.35

1.5

26mesh x 26mesh

0.63

0.35

1.66

28mesh x 28mesh

0.6

0.31

1.36

30mesh x 30mesh

0.64

0.31

1.46

32mesh x 32mesh

0.5

0.29

1.36

34mesh x 34mesh

0.47

0.28

1.3

36mesh x 36mesh

0.47

0.28

1.3

38mesh x 38mesh

0.41

0.26

1.1

40mesh x 40mesh

0.39

0.25

1.2

40mesh x 40mesh

0.41

0.23

1.06

40mesh x 40mesh

0.43

0.21

0.88

42mesh x 42mesh

0.365

0.24

1.1

44mesh x 44mesh

0.347

0.23

1.0

46mesh x 46mesh

0.332

0.22

1.0

48mesh x 48mesh

0.319

0.20

0.96

50mesh x 50mesh

0.318

0.19

0.91

50mesh x 50mesh

0.338

0.17

0.72

56mesh x 56mesh

0.248

0.17

0.81

60mesh x 60mesh

0.27

0.15

0.68
